CALB L148N58 NMC Cell

The CALB NMC L148N58 is a high-performance lithium-ion battery cell utilizing Nickel Manganese Cobalt (NMC) chemistry. With a nominal voltage of around 3.66V and a capacity of 58Ah, it features a compact prismatic design that delivers excellent energy density, fast charging capabilities, and long cycle life. It is ideally suited for electric vehicles (EVs), battery modules, and commercial energy storage systems (ESS), providing stable performance and high safety across diverse operating conditions.

Get Quote

LYTH

Founded

2016

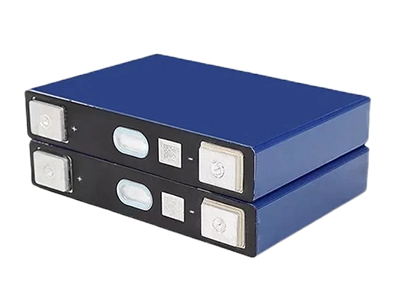

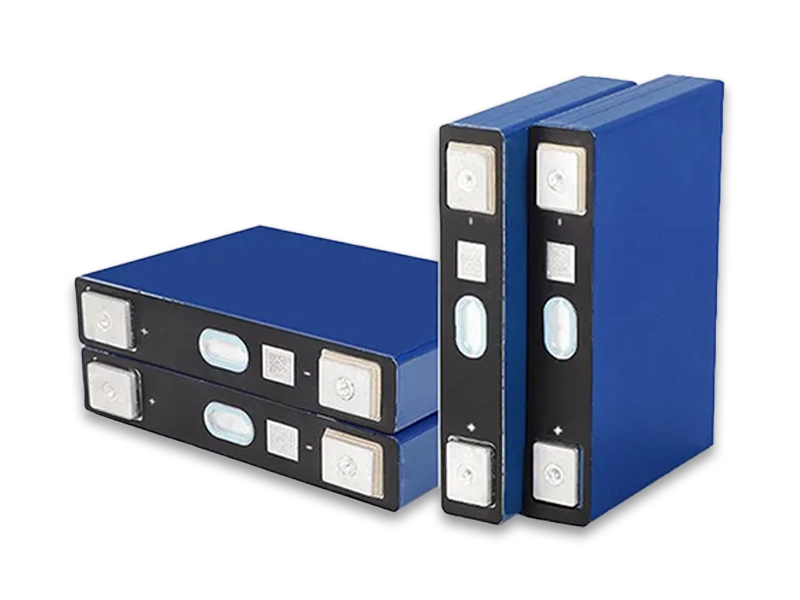

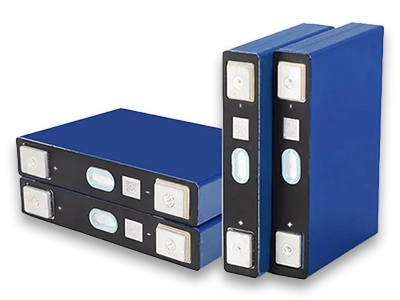

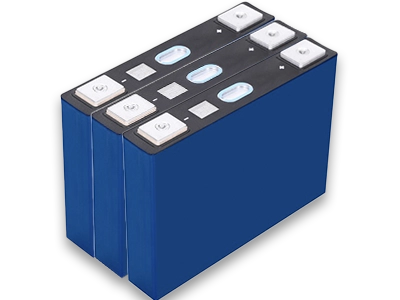

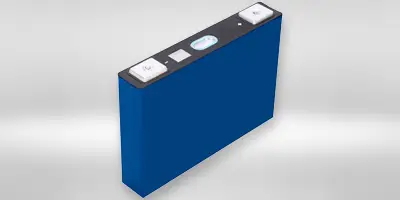

L148N58 Battery Cells Display

Product Display

L148N58 NMC Battery Cell

Nominal Capacity

58Ah @1C

Nominal Voltage

3.7V

Nominal Energy

≈214.6Wh

Weight

926 ± 20g

Dimension

148.24 × 26.66 × 105.9 mm

Mass Energy Density

≈231.8 Wh/kg

Volume Energy Density

≈513 Wh/L

Internal Resistance

0.60 ~ 0.80 mΩ

Work Voltage

2.75V ~ 4.35V (T≥0°C)

Recommended SOC Window

5% ~ 97%

Cycle Life

≥2000 cycles

Charging Temperature

-20 ~ 55°C

Discharging Temperature

-30 ~ 55°C

Shell Material

Aluminium alloy

Battery Accessories

In many NMC battery projects, flat terminals are commonly used, and customers often seek guidance on welding methods or selecting the appropriate terminal type. We provide a range of terminal options—feel free to choose what best suits your application. Not sure which one to pick? We're happy to assist or offer customized terminal solutions.

We also supply key accessories such as busbars, screws, BMS units, and enclosures, all compatible with various NMC cell models. Everything you need for a complete and reliable battery system is available in one place.
