CALB L221N147A NMC Cell

The CALB L221N147A is a high-energy 147Ah NMC prismatic lithium-ion cell with a nominal voltage of 3.66V. It is designed for electric vehicles, commercial battery systems, and energy storage applications that require excellent energy density, long cycle life, and superior safety. With its advanced chemistry and reliable structure, the L221N147A offers outstanding performance for next-generation mobility and energy solutions.

Get Quote

LYTH

Founded

2016

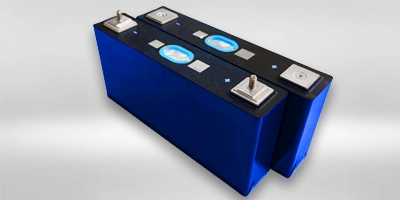

L221N147 NMC Battery Cells Display

Product Display

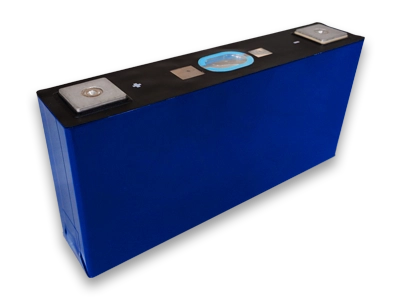

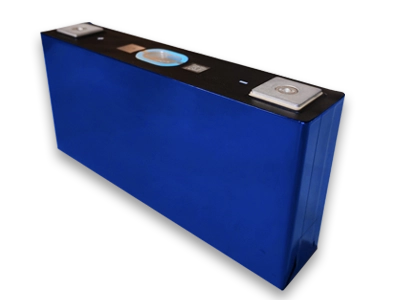

L221N147A NMC Battery Cell

147Ah NMC Prismatic Cell

Rated Capacity

147Ah

Rated Voltage

3.71V

Rated Energy

564Wh

Cell Weight

2.34 ± 0.025 kg

Mass Energy Density

241 Wh/kg

Dimensions

220.8 × 44.46 × 105.2 mm

Volume Energy Density

≈546.1 Wh/L

AC Impedance Resistance

<0.4 mΩ

Work Voltage

2.8V ~ 4.35V (0°C to 55°C)
2.5V ~ 4.35V (-30°C to <0°C)

Fast Charging Time

≤20 min (30-80% SOC)

Charging Temperature

-20 ~ 55°C

Discharging Temperature

-30 ~ 55°C

Storage Temperature

-40 ~ 60°C

Battery Accessories

In many NMC battery projects, flat terminals are commonly used, and customers often seek guidance on welding methods or selecting the appropriate terminal type. We provide a range of terminal options—feel free to choose what best suits your application. Not sure which one to pick? We're happy to assist or offer customized terminal solutions.

We also supply key accessories such as busbars, screws, BMS units, and enclosures, all compatible with various NMC cell models. Everything you need for a complete and reliable battery system is available in one place.
