CALB L173F314 LiFePO4 Cell

CALB L173F314 is a 314Ah high-capacity LiFePO₄ prismatic cell designed for outstanding safety, long cycle life, and excellent thermal stability. With a nominal voltage of 3.2V and energy of over 1000Wh, it is widely used in electric commercial vehicles and large-scale energy storage systems where performance and reliability are essential.

Get Quote

LYTH

Founded

2016

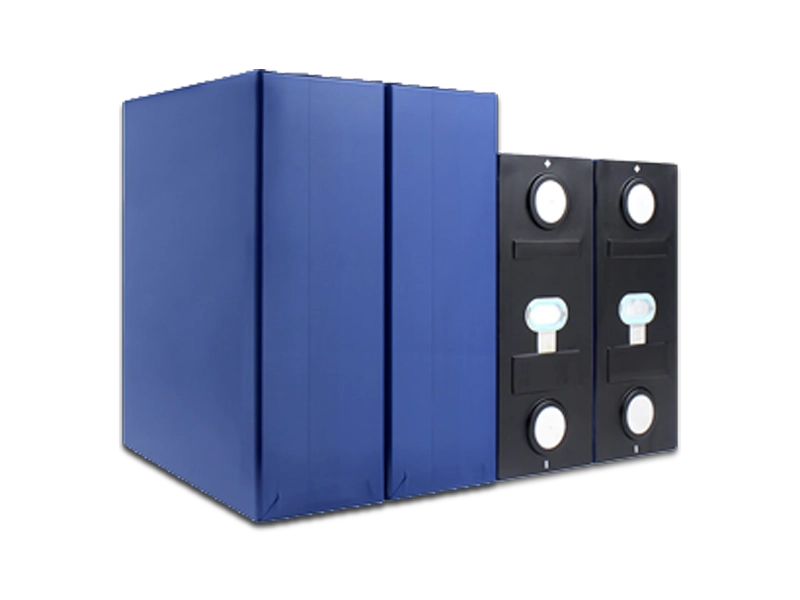

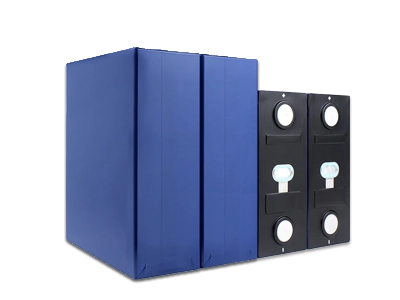

L173F314 Battery Cells Display

Product Display

L300F170 LFP Battery Cell

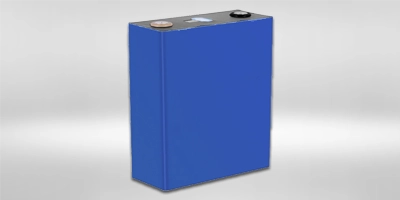

L173F314 LiFePO4 Cell

Rated Capacity

314Ah

Rated Voltage

3.2V

Rated Energy

1004.8Wh

Cell Weight

5.56 ± 0.15kg

Mass Energy Density

180.7Wh/kg

Cell Size

174.7 × 71.46 × 207.2mm (with terminal)

Volume Energy Density

394.0Wh/L

Internal Resistance

≤0.23mΩ (AC)

Charging Temperature

0~55°C

Discharging Temperature

-30~55°C

Storage Temperature

-40~60°C

Voltage Range

2.5~3.65V (0°C < T ≤ 60°C);
2.0~3.65V (-30°C ≤ T ≤ 0°C)

Battery Accessories

In many LiFePO₄ battery projects, flat terminals are common, and customers often need help with welding or choosing the right terminal type. Here are some samples we offer—you’re free to choose what suits you best. Not sure which one to pick? We’re happy to help or provide customized solutions.

We also supply essential accessories like busbars, screws, BMS, and enclosures, all matched to different LiFePO₄ cell models. Everything you need for a complete and compatible battery setup is here.
