CALB L300F170 LiFePO4 cell

The CALB L300F170 LiFePO₄ cell is a high-performance prismatic battery featuring low internal resistance (≤0.9mΩ) and a durable design. Measuring 37.8×300×127mm and weighing 3.18±0.2kg, it supports a wide operating temperature range (-36℃ to 65℃ discharge, 0-55℃ charging) and delivers over 4000 deep charge-discharge cycles. With a charge voltage of 3.65V and discharge cut-off voltage of 2.5V, the cell ensures reliable power delivery for toys, power tools, home appliances, and consumer electronics. Get Quote

LYTH

Founded

2016

L300F170 Battery Cells Display

Product Display

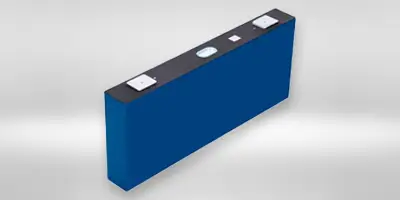

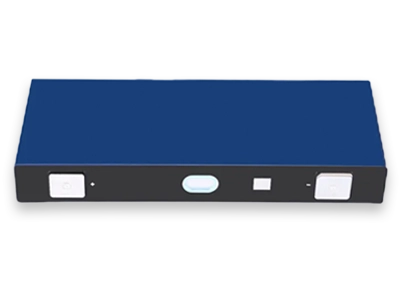

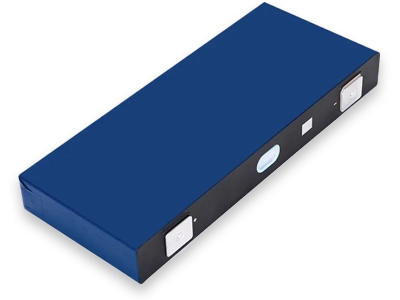

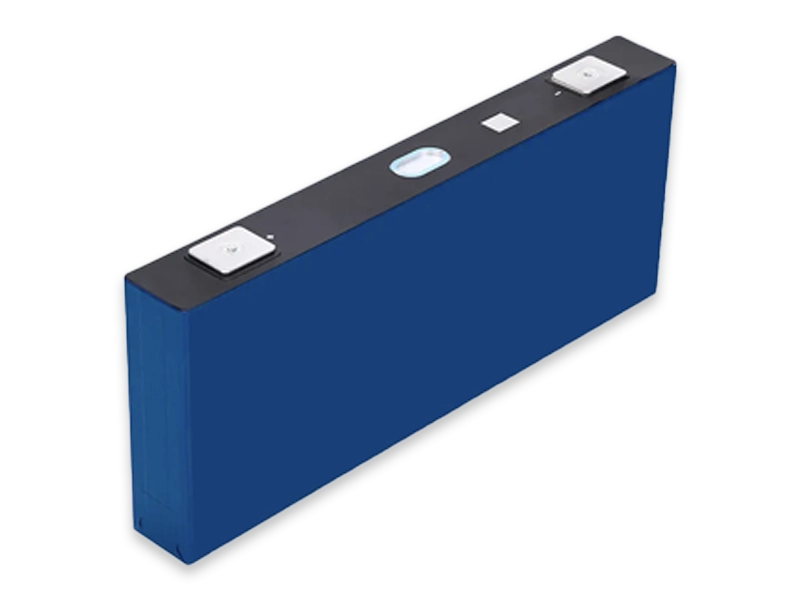

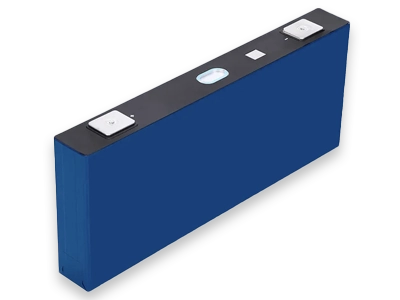

L300F170 LFP Battery Cell

L300F170 LiFePO4 cell

Nominal Voltage

3.2V

Rated Capacity

170Ah

Working Voltage Range

2.5–3.65V

Max Discharge Current

1C

Cut off Voltage

2.5±0.05V

Cycle Life

≥4000 cycles

Weight

3.18 ± 0.07kg

Internal Resistance

≤0.9mΩ

Dimensions

300×37.8×127mm

Standard Charge

0.5C

Standard Discharge

0.5C

Charging Temperature

0~60°C

Discharging Temperature

-20~60°C

Battery Accessories

In many LiFePO₄ battery projects, flat terminals are common, and customers often need help with welding or choosing the right terminal type. Here are some samples we offer—you’re free to choose what suits you best. Not sure which one to pick? We’re happy to help or provide customized solutions.

We also supply essential accessories like busbars, screws, BMS, and enclosures, all matched to different LiFePO₄ cell models. Everything you need for a complete and compatible battery setup is here.
