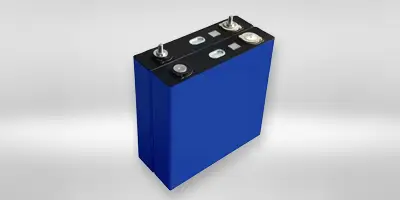

CALB L173F125 LiFePO4 cell

The CALB 3.2V 125Ah LiFePO₄ cell is a high-performance prismatic battery featuring low internal resistance (≤0.9mΩ) and a durable aluminum casing. Measuring 178×174.4×36.5mm and weighing 2.45±0.15kg, it supports a wide operating temperature range (-20℃ to 60℃ discharge) and delivers over 4000 deep charge-discharge cycles. With a standard charge/discharge rate of 0.5C and maximum 1C, the cell ensures reliable power delivery for EVs, solar storage, and off-grid systems.

Get Quote

LYTH

Founded

2016

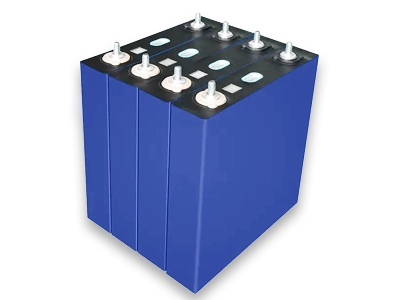

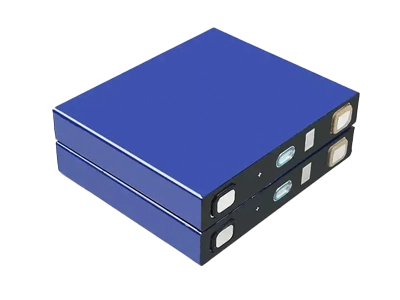

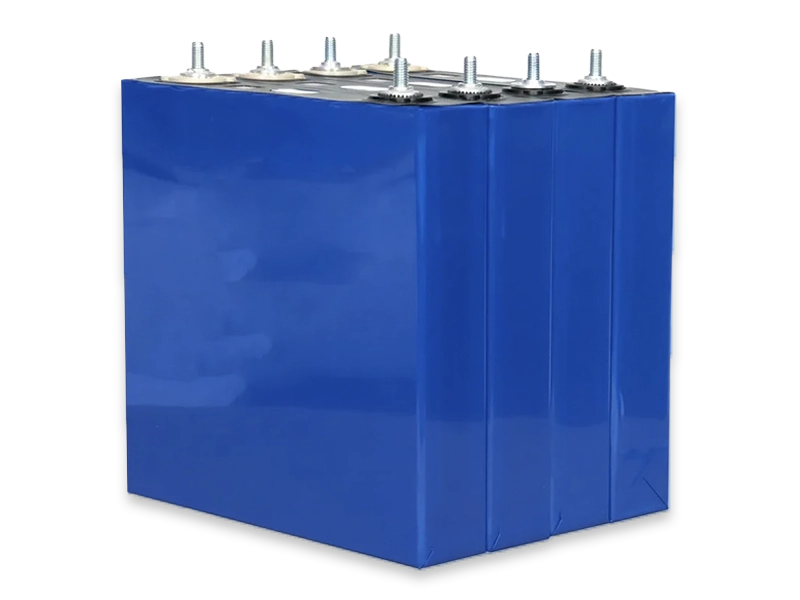

L173F125 Battery Cells Display

Product Display

L173F125 LFP Battery Cell

L173F125A LiFePO4 cell

Nominal Voltage

3.2V

Rated Capacity

125Ah

Voltage Range

2.5–3.65V

Max Discharge Current

1C (125A)

Cycle Life

≥4000 cycles

Weight

2.45 ± 0.15kg

Internal Resistance

≤0.9mΩ

Dimensions

178×174.4×36.5mm

Standard Charge

0.5C

Standard Discharge

0.5C

Charging Temperature

0~60°C

Discharging Temperature

-20~60°C

Accessories

M6 studs, 1 busbar, 2 nuts

Battery Accessories

In many LiFePO₄ battery projects, flat terminals are common, and customers often need help with welding or choosing the right terminal type. Here are some samples we offer—you’re free to choose what suits you best. Not sure which one to pick? We’re happy to help or provide customized solutions.

We also supply essential accessories like busbars, screws, BMS, and enclosures, all matched to different LiFePO₄ cell models. Everything you need for a complete and compatible battery setup is here.
