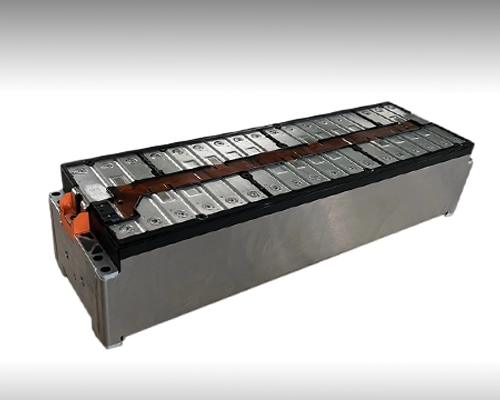

Explore every design detail of the LYTH VDA battery module through our interactive 3D model. Rotate, zoom, and examine the internal structure in 360°. It's the best way to experience our exceptional engineering.
This series of modules is engineered to maximize energy density within a limited space. Through standardized dimensions and interfaces, combined with an efficient internal power configuration, we provide a universal power platform that is both compact and powerful, perfectly suited for various types of modern electric vehicles.
Featuring standardized dimensions and electrical interfaces, the module supports flexible integration into various voltage platforms. With optional thermal management and structural components, it simplifies pack-level design and shortens system integration time.
Safety is paramount. Our modules incorporate multiple layers of protection, including advanced thermal management, durable aluminum alloy casing, and a sophisticated Battery Management System (BMS) to prevent overcharging, over-discharging, and short circuits, ensuring operational reliability.
| Specification | Value |
|---|---|
| Nominal Voltage | 22.02V(1C) |
| Rated Energy | 3.83 kWh |
| Nominal Capacity | 174(1C) Ah |
| Dimensions | 522.2 x 151.9 x 119 mm |
| Weight | ≤18.24 kg |
| Cycle Life | ≥1500 times |
| Operating Temperature | -20°C ~ 60°C |
